PosiTest HHD – High Voltage Holiday Detector

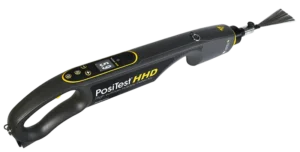

PosiTest HHD is a handheld high voltage holiday detector used to find holidays, porosity, pinholes, leaks, and other discontinuities in coatings, linings, and membranes. It is available in stick-type (with pulsed DC) and in compact wand-style (with continuous DC) versions.

Key Features

  • Detects flaws in protective coatings using either pulsed or continuous DC output

  • Lightweight and ergonomic design for comfortable all-day use

  • Regulated voltage that remains stable under load (±5% accuracy)

  • Voltage calculator feature: input coating thickness to get the correct test voltage automatically

  • Multiple electrode options — rolling spring, flat wire brush, half-circle brush, fan brush, etc. — custom sizes available

  • Audible and visual alarms when defects are found

  • Durable housing: sealed against dust, moisture, and shock; comes with a hard shell case


Technical Specifications

Parameter Specification
DC Output / Voltage Range 0.5 kV to 35 kV (stick-type, pulsed)
0.5 kV to 30 kV (wand-style, continuous)
Output Accuracy ±5%
Pulse Duration ≈ 10 microseconds (for pulsed type)
Battery Li-Ion battery packs (various capacities depending on kit)
Operating Temperature −20°C to +60°C
Included Accessories Ground (earth) cable, electrode rod(s), interchangeable electrodes, charger, hard shell case
Weight / Size Depends on kit; wand-type is more compact and lighter than stick-type

Variants / Kits

  • Basic Kit: includes essential items for field testing, with a shorter electrode rod

  • Full Kit: includes extension rods, larger electrodes, shoulder strap, more powerful battery pack, and heavy-duty case

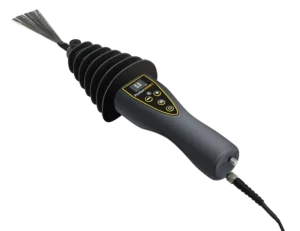

  • Wand-style (HHD-C): more compact version; integrates battery and electronics into wand handle, good for hard-to-reach places
